View Issue Details

Jump to NotesJump to History
IDProjectCategoryView StatusDate SubmittedLast Update
0000893Trip ReaderFeature 功能建议public2025-01-21 06:542025-02-15 09:10
ReporterastraIsla Assigned To
PrioritynormalSeverityfeatureReproducibilityN/A
Status newResolutionopen
Summary0000893: 能否考虑加入对武汉通的识别
Description

如题，能否考虑适配一下武汉通

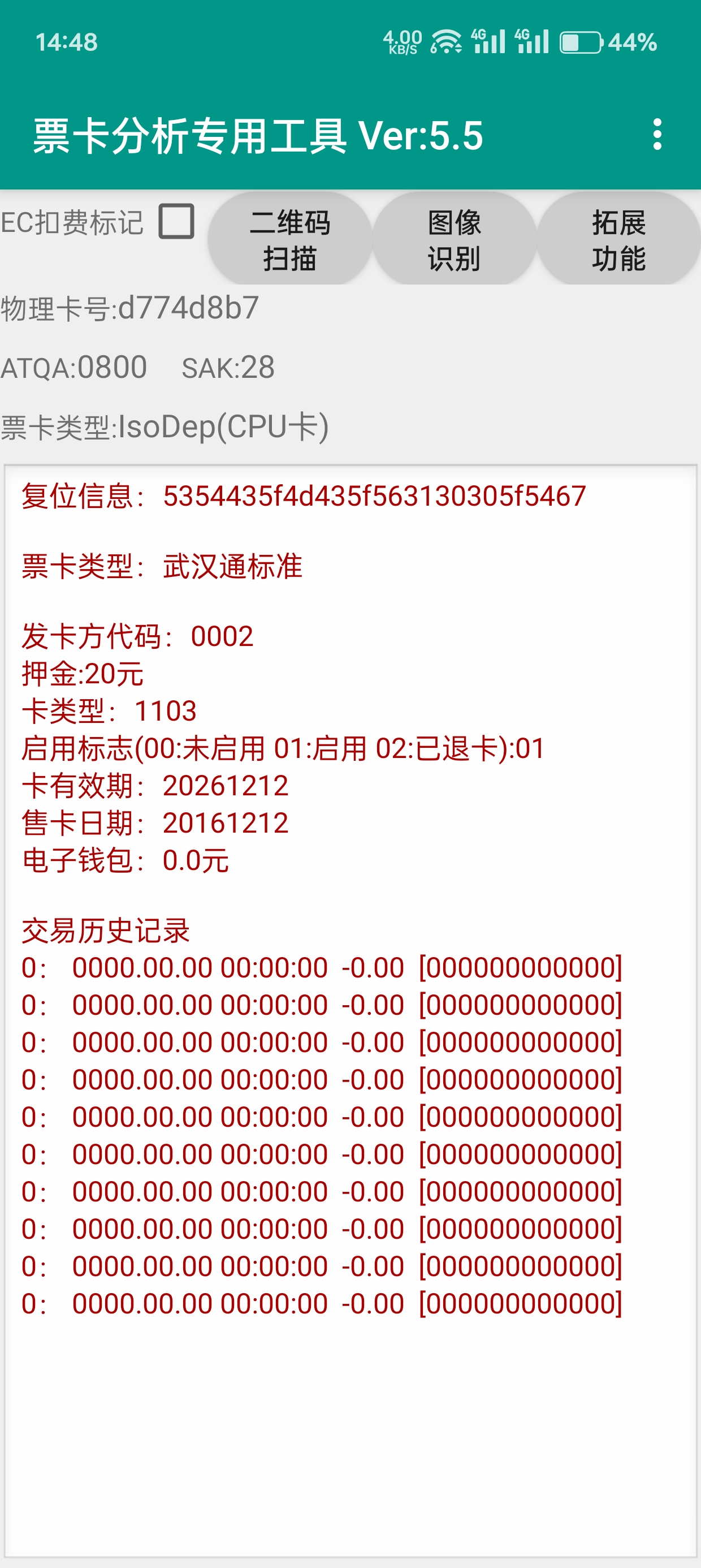

已附上full scan文件和票卡分析工具读取的信息
不过这张卡是没有交易记录的 等后面有空了再补上有记录的数据

TagsNo tags attached.
ProvinceHubei 湖北
Carrier
Type

Activities

astraIsla

2025-01-21 06:56

reporter   ~0001846

Expert-20250121-145011(1).txt (3,194 bytes)
SELECT MF
00A40000023F00
6F15840E315041592E5359532E4444463031A5038801019000 (23)

Info 0x05
00B0850000
0002012016121201000000000120110320261212201612120800009000 (27)

Info 0x0A
00B08A0000
8356957571FFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFF9000 (32)

Info 0x0B
00B08B0000
201612122018013100000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000009000 (64)

SELECT CU
00A4040009A00000000386980701
6A82 (0)

SELECT 1001
00A40000021001
6F3384094150312E5748435443A5269F0801029F0C1F000200270000000001010000802711033569575720161212202612120186A09000 (53)

CHECK BALANCE
805C000204
000000009000 (4)

Info 0x0A
00B08A0000
FFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFF9000 (32)

Info 0x0B
00B08B0000
FFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFF9000 (32)

Info 0x16
00B0960000
00000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000009000 (56)

Record 0x14 #1
00B201A400
012E000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000009000 (48)

Record 0x17 #1
00B201BC00
012E000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000009000 (48)

Record 0x17 #2
00B202BC00
022E000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000009000 (48)

Record 0x17 #3
00B203BC00
032E000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000009000 (48)

Record 0x17 #4
00B204BC00
041E0000000000000000000000000000000000000000000000000000000000009000 (32)

Record 0x17 #5
00B205BC00
051E0000000000000000000000000000000000000000000000000000000000009000 (32)

Record 0x17 #6
00B206BC00
061E0000000000000000000000000000000000000000000000000000000000009000 (32)

Record 0x18 #1
00B201C400
00000000000000000000000000000000000000000000009000 (23)

Record 0x18 #2
00B202C400
00000000000000000000000000000000000000000000009000 (23)

Record 0x18 #3
00B203C400
00000000000000000000000000000000000000000000009000 (23)

Record 0x18 #4
00B204C400
00000000000000000000000000000000000000000000009000 (23)

Record 0x18 #5
00B205C400
00000000000000000000000000000000000000000000009000 (23)

Record 0x18 #6
00B206C400
00000000000000000000000000000000000000000000009000 (23)

Record 0x18 #7
00B207C400
00000000000000000000000000000000000000000000009000 (23)

Record 0x18 #8
00B208C400
00000000000000000000000000000000000000000000009000 (23)

Record 0x18 #9
00B209C400
00000000000000000000000000000000000000000000009000 (23)

Record 0x18 #10
00B20AC400
00000000000000000000000000000000000000000000009000 (23)

Record 0x1A #1
00B201D400
00000000000000000000000000000000000000000000000000000000009000 (29)

Record 0x1A #2
00B202D400
00000000000000000000000000000000000000000000000000000000009000 (29)

Record 0x1A #3
00B203D400
00000000000000000000000000000000000000000000000000000000009000 (29)

Record 0x1A #4
00B204D400
00000000000000000000000000000000000000000000000000000000009000 (29)

SELECT 1002
00A40000021002
6F0B84094150322E57484354439000 (13)

CHECK BALANCE
805C000204
000000009000 (4)

SELECT TU
00A4040008A000000632010105
6A82 (0)
Expert-20250121-145011(1).txt (3,194 bytes)

astraIsla

2025-01-21 06:56

reporter   ~0001847


astraIsla

2025-02-15 09:09

reporter   ~0001859

补充一下有交易记录的full scan文件

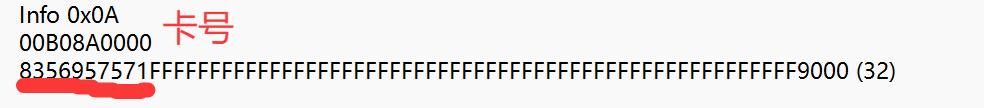

简单看了一下 卡号存在0x0A的前十位

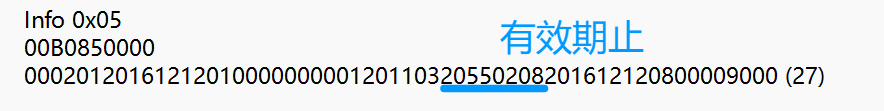

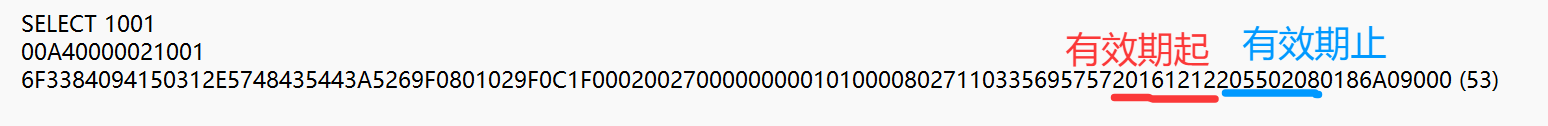

有效期存在SELECT 1001的第93位起八位和0x05的33位起八位（在地铁站的武汉通自助机查询余额会更新有效期到查询日期30年后，经过对比查询前后的full scan只有这两处有变动）

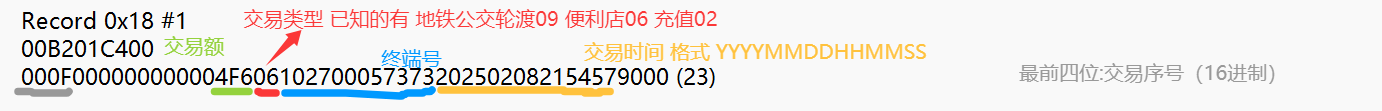

交易记录存在0x18记录中 其中前四位为十六进制的交易序号 紧跟的14位应该都是余额（并不确定到底为多长 因为这几位除了余额都是写0）
第19，20位为交易类型（目前测试出来已知的为02-充值 09-地铁进站、出站，公交，轮渡 06-便利店消费）
第21-32位为12位的终端号
第33-46位为交易时间 格式为YYYYMMDDHHMMSS
此外0x17文件在地铁进站时会写入 但是每次进站都会覆盖上一次 所以暂时没有分析

Expert-20250208-222315(1) (2).txt (3,194 bytes)
SELECT MF
00A40000023F00
6F15840E315041592E5359532E4444463031A5038801019000 (23)

Info 0x05
00B0850000
0002012016121201000000000120110320550208201612120800009000 (27)

Info 0x0A
00B08A0000
8356957571FFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFF9000 (32)

Info 0x0B
00B08B0000
201612122018013100000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000009000 (64)

SELECT CU
00A4040009A00000000386980701
6A82 (0)

SELECT 1001
00A40000021001
6F3384094150312E5748435443A5269F0801029F0C1F000200270000000001010000802711033569575720161212205502080186A09000 (53)

CHECK BALANCE
805C000204
000008CA9000 (4)

Info 0x0A
00B08A0000
FFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFF9000 (32)

Info 0x0B
00B08B0000
FFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFF9000 (32)

Info 0x16
00B0960000
00000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000009000 (56)

Record 0x14 #1
00B201A400
012E000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000009000 (48)

Record 0x17 #1
00B201BC00
012E001602394313202502081930110000000000000000000000000000000010270200619500000000000000000000009000 (48)

Record 0x17 #2
00B202BC00
022E0000000000000000000000000000000000000000000000000000000000000000000021436600A0002502081814009000 (48)

Record 0x17 #3
00B203BC00
032E000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000009000 (48)

Record 0x17 #4
00B204BC00
041E0000000000000000000000000000000000000000000000000000000000009000 (32)

Record 0x17 #5
00B205BC00
051E0000000000000000000000000000000000000000000000000000000000009000 (32)

Record 0x17 #6
00B206BC00
061E0000000000000000000000000000000000000000000000000000000000009000 (32)

Record 0x18 #1
00B201C400
000F000000000004F606102700057373202502082154579000 (23)

Record 0x18 #2
00B202C400
000E000000000000B409102702005532202502081930119000 (23)

Record 0x18 #3
00B203C400
000D0000000000000009102702006195202502081918149000 (23)

Record 0x18 #4
00B204C400
000C000000000000A009102701030832202502081814489000 (23)

Record 0x18 #5
00B205C400
000B0000000000012C06102703003081202502081715079000 (23)

Record 0x18 #6
00B206C400
000A0000000000008209102701029711202502081621559000 (23)

Record 0x18 #7
00B207C400
00090000000000010E09102702012377202502081538269000 (23)

Record 0x18 #8
00B208C400
00080000000000000009102702005502202502081519229000 (23)

Record 0x18 #9
00B209C400
00070000000000021C09102702005547202502081404099000 (23)

Record 0x18 #10
00B20AC400
00060000000000000009102702007090202502081317129000 (23)

Record 0x1A #1
00B201D400
00000000000000000000000000000000000000000000000000000000009000 (29)

Record 0x1A #2
00B202D400
00000000000000000000000000000000000000000000000000000000009000 (29)

Record 0x1A #3
00B203D400
00000000000000000000000000000000000000000000000000000000009000 (29)

Record 0x1A #4
00B204D400
00000000000000000000000000000000000000000000000000000000009000 (29)

SELECT 1002
00A40000021002
6F0B84094150322E57484354439000 (13)

CHECK BALANCE
805C000204
000000009000 (4)

SELECT TU
00A4040008A000000632010105
6A82 (0)
Expert-20250208-222315(1) (2).txt (3,194 bytes)
